Chwyt walcowy - DIN 1835

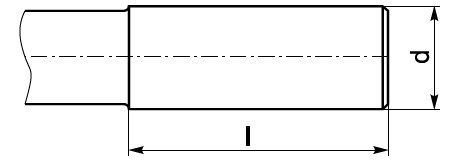

DIN 1835-A |
|||||
 |
|||||

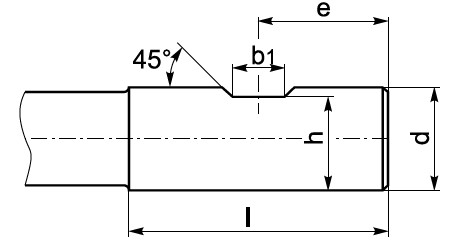

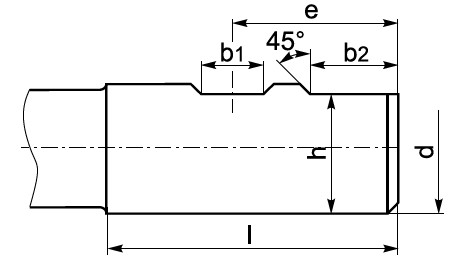

DIN 1835-B (Weldon) |
|||||
 |
|||||
 |
|||||
| d [mm] | l [mm] | b1 [mm] | b2 [mm] | h [mm] | e [mm] |
|---|---|---|---|---|---|
| 6 | 36 | 4,2 | - | 5,1 | 18,0 |
| 8 | 36 | 5,5 | - | 6,9 | 18,0 |
| 10 | 40 | 7,0 | - | 8,5 | 20,0 |
| 12 | 45 | 8,0 | - | 10,4 | 22,5 |
| 14 | 45 | 8,0 | - | 12,7 | 22,5 |
| 16 | 48 | 10,0 | - | 14,2 | 24,0 |
| 18 | 48 | 10,0 | - | 16,2 | 24,0 |
| 20 | 50 | 11,0 | - | 18,2 | 25,0 |
| 25 | 56 | 12,0 | 17 | 23,0 | 32,0 |
| 32 | 60 | 14,0 | 19 | 30,0 | 35,0 |
