Opis produktu
Właściwości i zastosowanie:

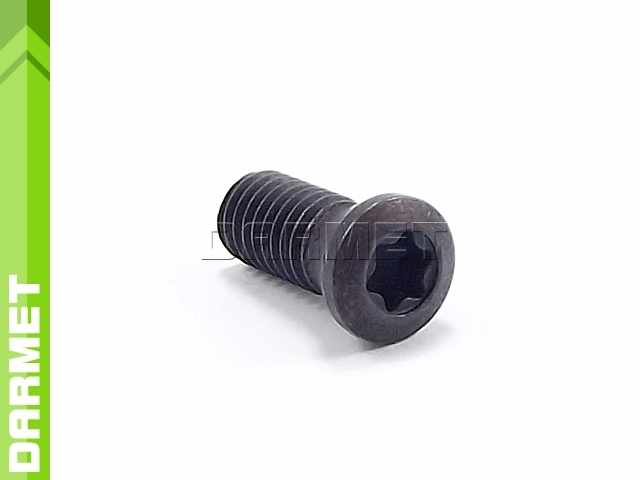

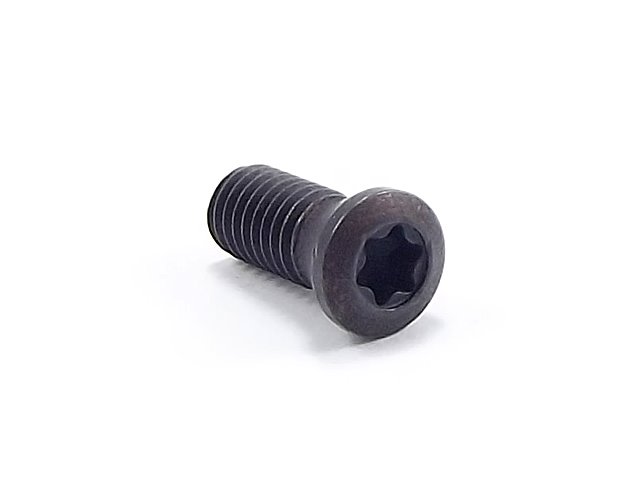

- Śruba mocująca SSSM do mocowania płytek wieloostrzowych w nożach tokarskich składanych typu S
- Płytka wieloostrzowa przykręcona poprzez profilowany otwór za pomocą klucza Torx
Dane techniczne:
| Parametr | Wartość |
|---|---|
| Gwint | M2,5 |
| Długość całkowita śruby | 5 mm |
System mocowania S
| Śruba mocująca SSSM2,5X5 pasuje do noży tokarskich składanych | |
|---|---|
| zewnętrznych: | wewnętrznych: |
| SCACR/L 1010E06 | S07K-SCLCR/L06 |
| SDACR/L 1010E07 | S08K-SCLCR/L06 |
| SDJCR/L 1010E07 | S10K-SCLCR/L06 |
| SDJCR/L 1212F07 | S12M-SCLCR/L06 |
| SDJCR/L 1616H07 | S08K-SCLCR/L06H09 |
| SDJCR/L 2020K07 | S10K-SCLCR/L06H11 |
| SDNCN 1010E07 | S12M-SCLCR/L06H13 |
| SDNCN 1212F07 | S08K-SCKCR/L06 |
| SVJCR/L 1212F11 | S10K-SCKCR/L06 |
| SVJCR/L 1616H11 | S12M-SCKCR/L06 |
| SVJCR/L 2020K11 | S12M-SCKCR/L09 |
| SVJCR/L 2525M11 | S16N-SCKCR/L09 |
| SVJBR/L 1212F11 | S20Q-SCKCR/L09 |
| SVJBR/L 1616H11 | S25R-SCKCR/L09 |
| SVJBR/L 2020K11 | S10K-SDQCR/L07 |
| SVJBR/L 2525M11 | S12M-SDQCR/L07 |
| SVVBN 1212F11 | S16Q-SDQCR/L07 |
| SVVBN 1616H11 | S10K-SDXCR/L07 |
| SVVBN 2020K11 | S12M-SDXCR/L07 |
| SVVCN 1212F11 | S16Q-SDWCR/L07 |
| SVVCN 1616H11 | S20Q-SDWCR/L07 |
| SVVCN 2020K11 | S10K-SDUCR/L07 |
| STACR/L 1212F11 | S12M-SDUCR/L07 |
| STFCR/L 1212F11 | S16Q-SDUCR/L07 |
| STFCR/L 1616H11 | S08K-STFCR/L09 |
| STFCR/L 2020K11 | S10K-STFCR/L09 |
| STGCR/L 1212F11 | S12M-STFCR/L09 |
| STGCR/L 1616H11 | S12M-STFCR/L11 |
| STTCR/L 1616H11 | S16Q-STFCR/L11 |
| SWACR/L 1010E04 | S20Q-STFCR/L11 |
| SWACR/L 1212F04 | S12M-STWCR/L11 |
| SRDCN 2020K06 | S20Q-STWCR/L11 |
| SRDCN 2525M06 | S25R-STWCR/L11 |
| SRACR/L 2020K06 | S08K-STFPR/L11H09 |
| SRACR/L 2525M06 | S10K-STFPR/L11H11 |
| S12M-STFPR/L11H13 | |
| S16Q-STFPR/L11H17 | |
| S08K-STUCR/L09 | |
| S08K-STUCR/L09-A16 | |
| S10K-STUCR/L09 | |
| S10K-STUCR/L09-A16 | |
| S10K-STUCR/L11 | |
| S10K-STUCR/L11-A16 | |
| S12M-STUCR/L11 | |
| S12M-STUCR/L11-A16 | |
| S16Q-STUCR/L11 | |
| S20Q-STUCR/L11 | |
| S25R-STUCR/L11 | |
| S16Q-SVUCR/L11 | |
| S16Q-SVWCR/L11 | |
| S16Q-SVXCR/L11 | |
| S16Q-SVZCR/L11 | |
| S20Q-SVZCR/L16 | |
| SIR/L 0010K11 | |
| SIR/L 0012K11 | |
